A QR code can be printed off and simply place it on your desk or other flat surface and your 3D model comes to life in the palm of your hand.
#EDRAWINGS VIEWER MEASURE ANDROID#

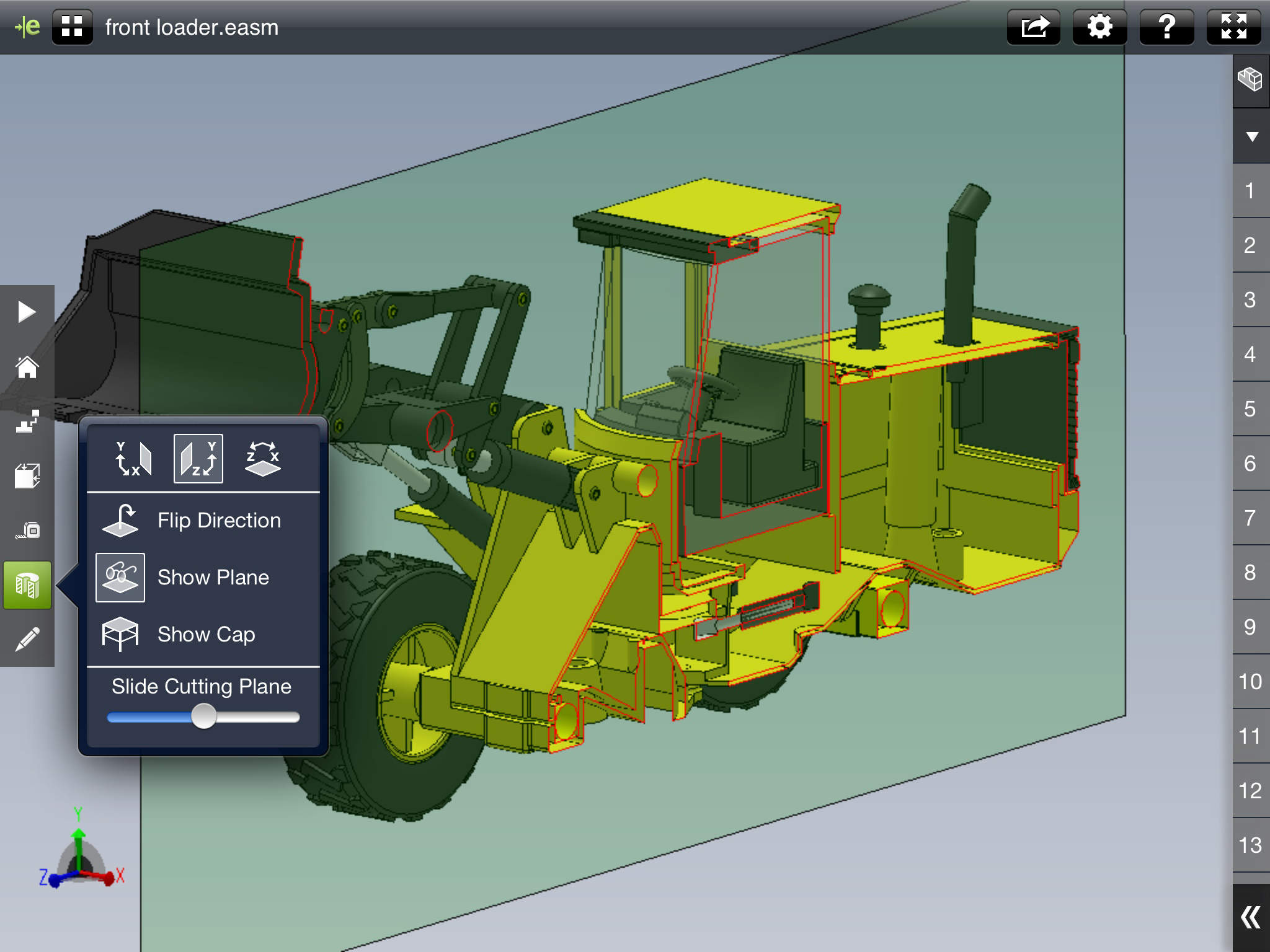

eDrawings is also available on android and iOS and a bit of a wow-factor on mobile devices is the AR function. AR (augmented Reality) to extend the viewing of any model.The HTML extends the capability of the viewer all in a single file that opens up in a web browser. HTML Output to export the file’s viewing capabilities into a smaller form factor.The professional edition includes all of the above features plus: Manipulate display settings to publish to other imaging formats.Enabling Configurations, Automatic Exploded Views, and other view types.Markups to communicate critical design information on the fly.Measure tool to get quick and accurate dimensions from the 3D model (can be disabled to prevent reverse engineering).The list of capabilities included in both the free and professional versions are: eDrawings Professional is available for purchase.įor starters, users can open and view native CAD files. If you own SOLIDWORKS Professional or Premium, eDrawings Professional is included with your license. On the Product Selection page, the items remaining will be the available free products.Īs a SOLIDWORKS customer, this will bypass any need to register your eDrawings Viewer.
#EDRAWINGS VIEWER MEASURE SERIAL NUMBER#
Simply deselect all items from the Serial Number page and proceed with the install. This does NOT require an additional seat of SOLIDWORKS, or for SOLIDWORKS to be installed. This is the recommended method for anyone who owns a copy of SOLIDWORKS. Viewer can also be installed via the SOLIDWORKS Installation Manager. Note that this method does require product registration.
#EDRAWINGS VIEWER MEASURE INSTALL#
Whether you want to install on a PC, Mac or mobile operating system, eDrawings Viewer can be downloaded at Additionally, eDrawings is a standalone product, meaning SOLIDWORKS is not required to install eDrawings Viewer or Professional. The user interface provides powerful illustration tools such as markups, measuring, sections views, and display styles that helps you better visualize the data received. This translates to a smooth transition between working with SOLIDWORKS and eDrawings viewer, along with its easy to use communication tools.ĮDrawings is viewer for both drawings and 3D CAD models from many different file types. The Professional ($) version comes with a handful of additional neat features, our focus here is on the free version, eDrawings Viewer.ĮDrawings Viewer borrows some of the best viewing capabilities that you will find inside of SOLIDWORKS. It's a little bit of work but it can be done.What do you do when someone wants to view your designs, but does not have access to SOLIDWORKS? For over a decade, eDrawings has been a staple for many of our users to view and share CAD information. I posted this info with the hope that it may benefit anyone looking to work with these files with only freely available software. STL file:Ģ) Window >Soften Edges then Check the Box for > Soften Coplanar edges (Update) Great tip From Mark to instantly clean up the imported. STL creation process) to clean up the parts to simplest form. If at first you do not see your part right away it may be very small due to improper units selected at import menu options.Īt first you will also have lots of extra lines to delete (side effect of the.
#EDRAWINGS VIEWER MEASURE TRIAL#
Some trial and error is required with the Options button to set the import units correctly. This will require the STL plugin if not present. STL file you just made from eDrawings program into Sketchup. Then you can then IMPORT your newly created. You can however Save a copy of the part to. I had hoped that I might be able to measure the copy but that did not work out. Save your self a COPY of the part with the Save AS menu item and I checked both option boxes (allow STL export and enable measurements). You can Right Click and Hide All if you want to be able to view just this part alone. The Selected the part you are interested in exporting is highlighted. Since the flat plates are the parts that I am interested in measuring I have selected it in the tree view on the left. I have opened the Side Carriage Left.SLDASM. Open the assembly that has the part that you are interested in Exporting. I played with Neil's FROG CNC model in eDrawings a bit and discovered that there is a work around - to use it to output files from his original models which you can then later measure or modify in SketchUp. There is a free SolidWorks eViewer available for download that you can use to view and inspect assemblies. One problem for me was not having SolidWorks on my PC. Neil shared the CAD Model of his build that he made with SolidWorks. I was following the recent Build thread of the FROG Router by Neil Rosenberg over in the CNC Router section.
